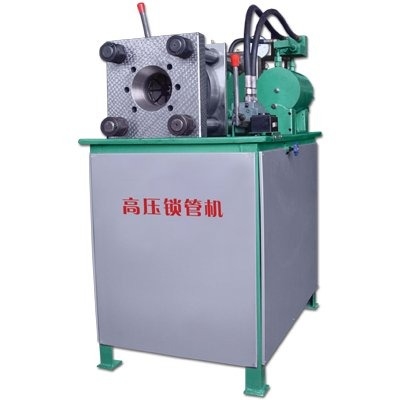

DSG-75 High Pressure Hydraulic Hose Crimping Machine (1/4" - 3" 6SP)

hose crimping machine ,hydraulic hose crimping machine ,hose crimper DSG-75.is low price,Reliable quality.

The machine is an enhanced type of a high pressure locking tube machine in model 102, which is the special equipment for pressing the tube end of a high pressure rubber tube with a outer cover and a core together for the production or repair a hydraulic support.

2. The composition and the main technical characters

The machine is composed of a locking & pressing mechanism, a motor, a gear pump, a control valve and an oil tank.

The locking & pressing force 1320T

The motor model Y132M-4

The power 7.5KW

The rotation speed 1440r/min

The gear pump model CBF-E540-ALPL

The relief valve model YF-L20H3-S

The reversal valve model 34SM-L20H-W

The oil tank capacity 100kg

The equipment size(L×W×H) 2000×850×1500

The weight 1600kg
